RQLG1-M

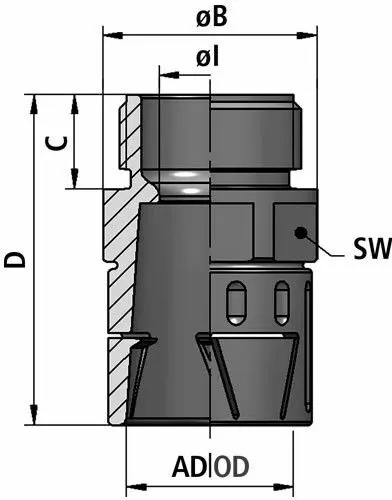

FLEXAquick Fitting RQLG1-M FLEXAquick Fitting RQLG1-M Diagram
FLEXAquick Fitting RQLG1-M FLEXAquick Fitting RQLG1-M Diagram

Certifications

cruus logo nfpa130 logo rohs certification logo reach certification logo uv certified

RQLG1-M

Light line series connector. Quick connect reducing installation time compared to liquid-tight fittings. Requires a flat-head to disengaged from conduit, still faster than liquid-tight.  Plastic connector, quick-type, straight, metric outer thread, integrated snap-in sleeve, conically sealed.

Material: PA plastics

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 65

Color: Grey, Black

Properties:

  • Resistant against oil and benzine
  • Highly resistant to acids and solvents
  • Free of silicone, cadmium and halogen

Note:

Lock-nuts and sealing washers sold separately. See below for corresponding accessories.
