ADMF

ADMF ADMF diagram
ADMF ADMF diagram

Certifications

EN_45545-3 logo nfpa130 logo rohs certification logo uv certified

ADMF

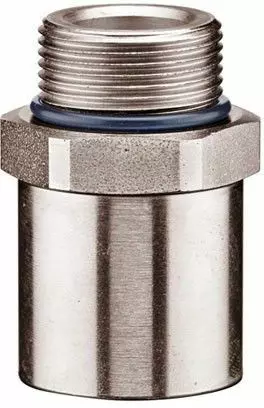

Fire protection closure, inner | outer thread, fire barrier for fed-through cables, minimum of 30 minutes fire blocking (E30)

Material: Body: nickel-plated brass | galvanized steel on request, O-ring: Perbunan, Inlay: carbon based

Temperature:
-40°C … +600°C
-40°F … +1112°F

Properties:

  • Minimum of 30 minutes of fire blocking (E30) acc. to EN 45545-2
  • Horizontal and vertical fitting position
