ROHRflex PA 6-L

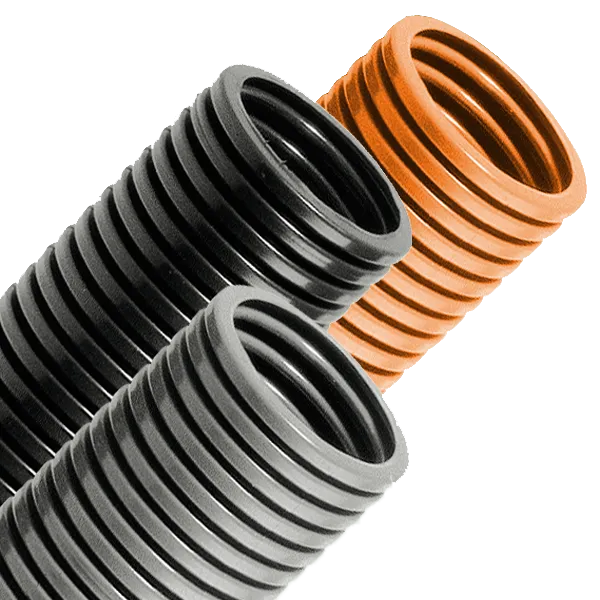

PA-12 black, grey, and orange conduit

Certifications

dve logo cruus logo lloyds register logo Pruef EAC Zertifizierung rohs certification logo reach certification logo ece r-118-03

ROHRflex PA 6-L

Corrugated all-plastic tubing internally and externally corrugated. Ideal for static applications.

Material: Plastics PA 6 Modified

Temperature:
-13°F ... + 248°F ^ + 302°F
-25°C ... + 120°C ^ + 150°C

Flammability: HB [UL 94]

Protection Class: IP 68 | IP 69K

Color: Black, Gray and Orange

Properties:

  • air- and liquid-tight
  • oil resistant up to 80°C
  • benzine resistant
  • widely resistant to acid and solvents
  • free of silicone, cadmium, halogen
  • flame retardant
  • black excellent UV-resistant, grey limited resistance
  • DIN 5510, part 2
  • UL File No. E86359

Detailed Data Sheet
