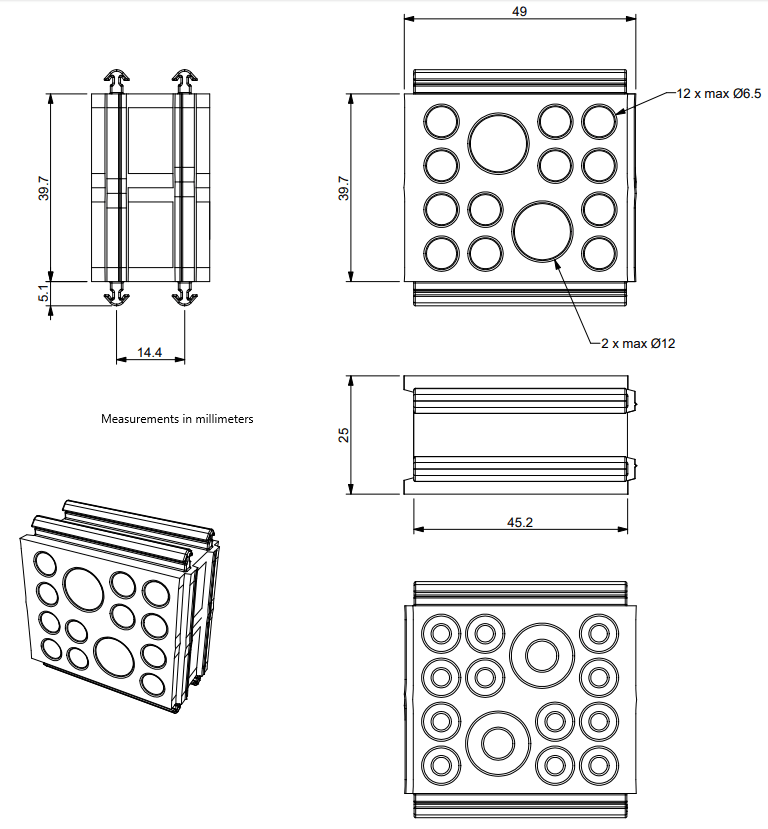

SPG M frame insert SPG M frame insert diagram
SPG M frame insert SPG M frame insert diagram

Certifications

cruus logo uv certified rohs certification logo ECOLAB logo

SPG M

The SPG M inserts enable a high number of cables to be installed in the DES splittable frames. The cable is pushed through the front membrane, whilst the second membrane increases the strain relief and liquid resistance.

Material: TPE

Temperature:
-40°F… +230°F
-40°C… +110°C

Flammability: V0 [UL 94]

Protection Class: NEMA 4X

Properties:

  • DES insert – large, double membrane
  • For high number of non-terminated cables
  • Grey and black colors available
  • UL94V0 for both colors
  • Increased strain relief acc. To EN62444

Note:

*ID represents the imprinted identification on the insert
