DES 24MX

The DES 24MX splittable cable entry system frames is a modular solution for installations where a large quantity of cables need to be routed through electrical cabinets walls or machines. Ideal solution for both terminated and non-terminated cables with the use of our wide selection of inserts. Providing the same great benefits as the standard DES line of frames, but with the added benefit of stackability.

Material: PP+GF

Temperature:
-40°F… +311°F
-40°C… +155°C

Flammability: V0 [UL 94]

Protection Class: IP 54 and NEMA 12

Properties:

  • Multiple possible configurations in one frame size
  • Able to stack 2 to 5 frames
  • Frame screws in AISI304 Stainless Steel
  • External gasket included
  • Strain relief according to EN 62444
  • Study construction IK10
  • Up to IP 54
  • Halogens and silicones free

Note:

Inserts sold separately. See below for corresponding accessories.

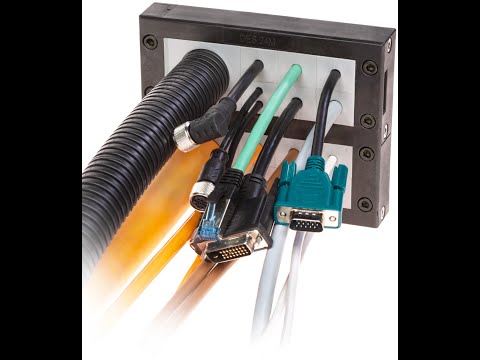

Stackable DES Splittable Cable Entry System Frames
