RQGZ1-N

FLEXAquick Fitting RQGZ1-N FLEXAquick Fitting RQGZ1-N Diagram
FLEXAquick Fitting RQGZ1-N FLEXAquick Fitting RQGZ1-N Diagram

Certifications

dve logo cruus logo lloyds register logo Pruef EAC Zertifizierung rohs certification logo reach certification logo uv certified

RQGZ1-N

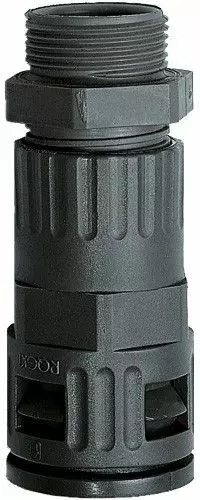

Plastic connector, quick-type, straight, NPT outer thread, integrated snap-in sleeve, strain relief, conically sealed

Material: PA plastics

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 66

Properties:

  • Rational tubing assembly due to one-piece screw connector with push-in lock for coarse and fine profile conduits
  • Simple dismounting by displacing the snap-in sleeve
  • Smallest out dimensions to be used under confined conditions
  • Free of silicone, cadmium and halogen
  • Self-extinguishing
  • Fit for high mechanical stress
  • Impact-resistant
  • Optimal held and sealing of cables at the same time
  • Use Loctite 533 for plastic on plastic applications.

Note:

Lock-nuts and sealing washers sold separately. See below for corresponding accessories.
