RQGKZ-M

FLEXAquick Fitting RQGKZ-M FLEXAquick Fitting RQGKZ-M Diagram
FLEXAquick Fitting RQGKZ-M FLEXAquick Fitting RQGKZ-M Diagram

Certifications

dve logo cruus logo db certified logo sncf logo lloyds register logo Pruef EAC Zertifizierung hl3 en 45545-2 nfpa130 logo rohs certification logo reach certification logo uv certified

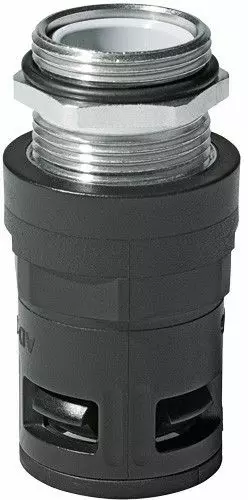

RQGKZ-M

Plastic connector, quick-type, straight, metric nickel-plated brass outer thread, integrated snap-in sleeve with sealing, strain relief, high density

Material: PA plastics | nickel-plated brass 58

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 68 | IP 69K

Color: Black

Properties:

  • Rational tubing assembly due to one-piece screw connector with push-in lock for coarse and fine profile conduits
  • Simple dismounting by displacing the snap-in sleeve
  • Smallest outer dimensions to be used under confined conditions
  • Free of silicone, cadmium and halogen
  • Self-extinguishing
  • Fit for high mechanical stress / Impact-resistant
  • High torque of thread connection
  • Optimal held and sealing of cables at the same time
  • Use Loctite 243 or 577 for metal on metal applications

Note:

Lock-nuts and sealing washers sold separately. See below for corresponding accessories.
