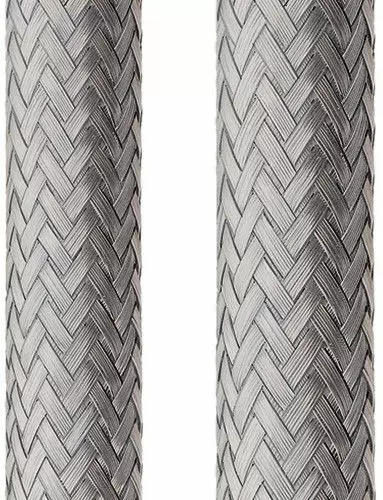

HG-CU

HG-CU braided sleeving

Certifications

rohs certification logo reach certification logo

HG-CU

Wire braiding consisting of round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%

Material: Tinned Copper

Temperature:
-50°C ... +250°C
-58°F ... +482°F

Color: Metallic Silver

Properties:

  • Axially pushed together, in a certain proportion, depending upon the construction of the braiding up to the double diameter
  • Easy pulling in of cables
  • The braiding becomes tight by stretching
  • Protection from hot swarfs
  • High shielding factor
  • Screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
