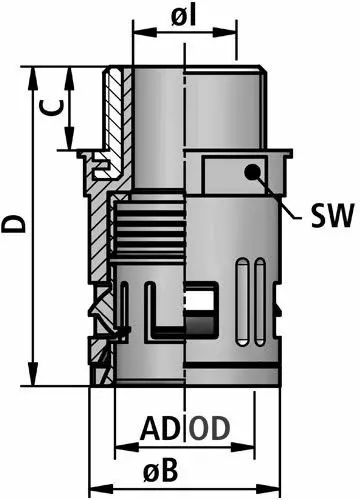

FLEXAquick Fitting RQGK-P FLEXAquick Fitting RQGK-P Diagram
FLEXAquick Fitting RQGK-P FLEXAquick Fitting RQGK-P Diagram

Certifications

dve logo cruus logo db certified logo sncf logo lloyds register logo Pruef EAC Zertifizierung hl3 en 45545-2 nfpa130 logo rohs certification logo reach certification logo uv certified

RQGK-P

Plastic connector, quick-type, straight, PG nickel-plated brass outer thread, integrated snap-in sleeve with sealing, high density

Material: PA plastics | nickel-plated brass 58

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 68 | IP 69K

Color: Black

Properties:

  • Rational tubing assembly due to one-piece screw connector with push-in lock for coarse and fine profile conduits
  • Simple dismounting by displacing the snap-in sleeve
  • Smallest outer dimensions to be used under confined conditions
  • Free of silicone, cadmium and halogen
  • Self-extinguishing
  • Fit for high mechanical stress / Impact-resistant
  • Metal thread with inner insulation
  • High torque of thread connection

Note:

Lock-nuts and sealing washers sold separately. See below for corresponding accessories.
