RQBK90-P

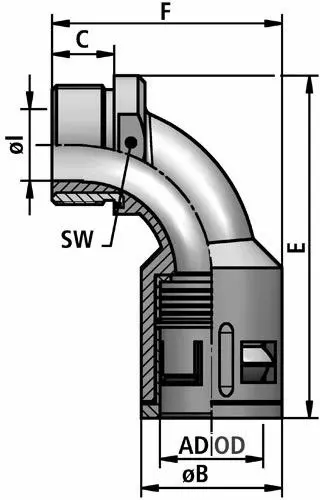

FLEXAquick Fitting RQBK90-P FLEXAquick Fitting RQBK90-P Diagram
FLEXAquick Fitting RQBK90-P FLEXAquick Fitting RQBK90-P Diagram

Certifications

dve logo cruus logo db certified logo sncf logo lloyds register logo Pruef EAC Zertifizierung hl3 en 45545-2 nfpa130 logo rohs certification logo reach certification logo uv certified

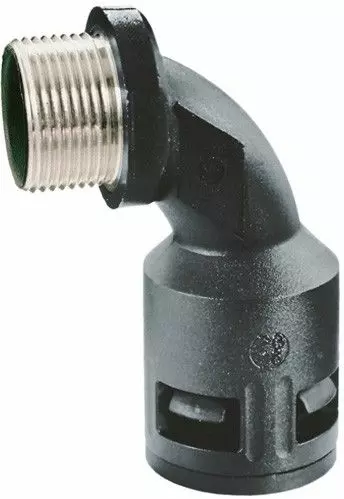

RQBK90-P

Plastic connector, quick-type, bend 90°, PG nickel-plated brass outer thread, integrated snap-in sleeve, with sealing, high density

Material: PA plastics | nickel-plated brass 58

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 68 | IP 69K

Color: Black

Properties:

  • Rational tubing assembly due to one-piece screw connector with push-in lock for coarse and fine profile conduits
  • Simple dismounting by displacing the snap-in sleeve
  • Smallest outer dimensions to be used under confined conditions
  • Free of silicone, cadmium and halogen
  • Self-extinguishing
  • Fit for high mechanical stress
  • Impact-resistant
  • High torque of thread connection
  • Sealing washers included

Note:

Lock-nuts sold separately. See below for corresponding accessories.
