RQW-C

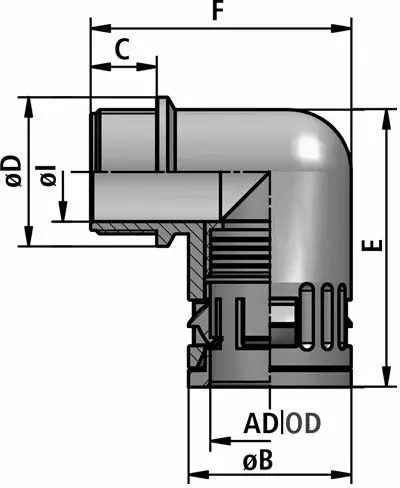

FLEXAquick Fitting RQW-C FLEXAquick Fitting RQW-C Diagram
FLEXAquick Fitting RQW-C FLEXAquick Fitting RQW-C Diagram

Certifications

dve logo cruus logo db certified logo sncf logo lloyds register logo Pruef EAC Zertifizierung vdtuv ggvseb logo EN_45545_HL2 logo nfpa130 logo rohs certification logo reach certification logo uv certified

RQW-C

Plastic connector, quick-type, elbow 90°, CTG outer thread, integrated snap-in sleeve with sealing, high density

Material: PA plastics

Temperature:
-40°C … +120°C
-40°F … +248°F

Protection Class: IP 68 | IP 69K

Color: Black

Properties:

  • Rational tubing assembly due to one-piece screw connector with push-in lock for coarse and fine profile conduits
  • Simple dismounting by displacing the snap-in sleeve
  • Smallest outer dimensions to be used under confined conditions
  • Free of silicone, cadmium and halogen
  • Self-extinguishing
  • Fit for high mechanical stress
  • Impact-resistant

Note:

Lock-nuts and sealing washers sold separately. See below for corresponding accessories.
