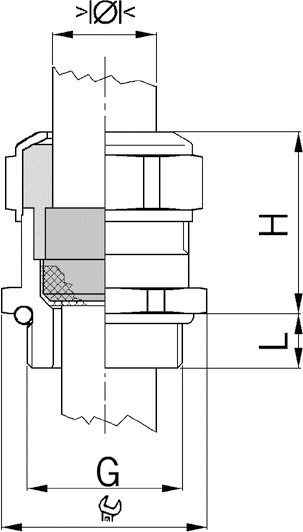

Progress MS EMC cable gland Progress MS EMC cable gland diagram
Progress MS EMC cable gland Progress MS EMC cable gland diagram

Certifications

ce logo sev logo dve logo cruus logo eac logo dnv.gl logo

Progress MS EMC Metric

Metric threaded EMC cable gland with contact sleeve

Material: Nickel-plated brass

Contact Sleeve: Nickel-plated brass

Seal: TPE

O-Ring: NBR

Temperature:
-40°C … +100°C
-40°F … +212°F

Protection Class: IP 68 | 69

Strain Relief: Version A acc. to EN 62444

Properties:

  • Excellent shield contact through the contact sleeve with the braided shield terminating in the screwed cable gland

Note:

Available with sealing inserts with EN 45545. When inquiring, prefix the number by the capital F.
